8. Theory Documentation

During curing of thermosetting composites, the resin undergoes cross-linking reactions that lead to an increase of material density and reduction in volume. A schematic representation of the curing of a thermoset is shown in Figure 1. It traces cure from chain formation and linear growth, through branching and finally to a cross-linked, infinite network. When monomers link into larger molecules they release energy in the form of heat. The exothermic heat of polymerization causes huge problems in processing especially in the case of thick laminates.

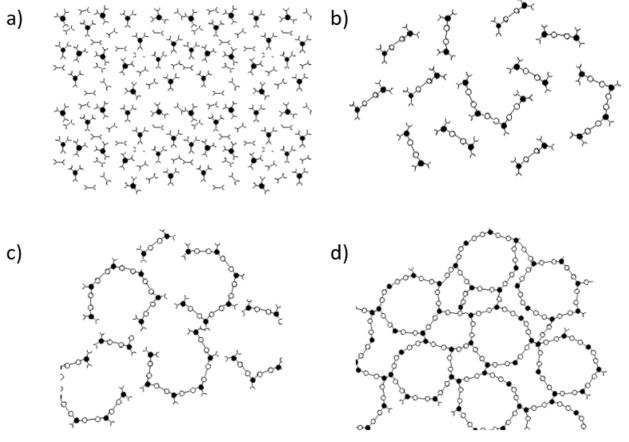

Fig. 8.1 Curing of thermoset resin: a) monomer stage, b) linear growth and branching c) formation of gelled but incompletely cross linked network, d) fully cured thermoset. (From Ref. 1)

8.1. Differential Scanning Calorimetry

Differential Scanning Calorimetry (DSC) is a thermo-analytical technique in which the difference in the amount of heat required to increase the temperature of a sample and reference is measured as a function of temperature. Both the sample and reference are maintained at nearly the same temperature throughout the experiment. Generally, the temperature program for a DSC analysis is designed such that the sample holder temperature increases linearly as a function of time. The reference sample should have a well-defined heat capacity over the range of temperatures to be scanned. The result of a DSC experiment is a curve of heat flux versus temperature or versus time. There are two different conventions: exothermic reactions in the sample shown with a positive or negative peak, depending on the kind of technology used in the experiment. This curve can be used to calculate enthalpies of transitions. This is done by integrating the peak corresponding to a given transition. The heat flow is measured as a direct function of time or of the sample temperature. This data provides extremely valuable information on key physical and chemical properties associated with thermosetting materials, including:

• Glass transition temperature (\(T_{g}\))

• Onset and completion of cure (\(x^{0}\) and \(x^{\infty}\) )

• Total heat of cure (\(H_{R}\))

• Heat capacities (\(C_{p}\))

Different cure kinetics models are available in ACCS. Data obtained through DSC can be fitted to these models. LMAT ltd offers material characterization as a service.

8.2. Cure Kinetics Equations for thermosets

8.2.1. Nth Order

\[\frac{\partial x}{\partial t} = \left(A e^{\frac{-E} {R T}}\right) \left(1-x\right)^n\]

Table 8.1 List of parameters/properties

\(x\): Degree of cure \((\%)\)	\(T\): Temperature \((K)\)
\(R\): Universal gas constant \((8.3144621 J.mol^{-1}.K^{-1})\)
\(A\): Pre-exponential factor \((s^{-1})\)	\(E\): Activation energy \((J.mol^{-1})\)
\(n\): Power n \((-)\)

8.2.2. Autocatalytic

\[\frac{\partial x}{\partial t} = \left(A e^{\frac{-E} {R T}}x^m\right) \left(1-x\right)^n\]

Table 8.2 List of parameters/properties

\(x\): Degree of cure \((\%)\)	\(T\): Temperature \((K)\)
\(R\): Universal gas constant \((8.3144621 J.mol^{-1}.K^{-1})\)
\(A\): Pre-exponential factor \((s^{-1})\)	\(E\): Activation energy \((J.mol^{-1})\)
\(m\): Power m \((-)\)	\(n\): Power n \((-)\)

8.2.3. Kamal Sourour

\[\frac{\partial x}{\partial t} = \left(A_1 e^{\frac{-E_1} {R T}}+A_2 e^{\frac{-E_2} {R T}} x^m\right) \left(1-x\right)^n\]

Table 8.3 List of parameters/properties

\(x\): Degree of cure \((\%)\)	\(T\): Temperature \((K)\)
\(R\): Universal gas constant \((8.3144621 J.mol^{-1}.K^{-1})\)
\(A_{1}, A_{2}\): Pre-exponential factor \((s^{-1})\)	\(E_{1}, E_{2}\): Activation energy \((J.mol^{-1})\)
\(m\): Power m \((-)\)	\(n\): Power n \((-)\)

8.2.4. Avrami-Erofeev

\[\frac{\partial x}{\partial t} = \left(A e^{\frac{-E} {R T}}\right) m \left(1-x\right) \left(-log\left(1-x\right)\right)^{1-1/n}\]

Table 8.4 List of parameters/properties

\(x\): Degree of cure \((\%)\)	\(T\): Temperature \((K)\)
\(R\): Universal gas constant \((8.3144621 J.mol^{-1}.K^{-1})\)
\(A\): Pre-exponential factor \((s^{-1})\)	\(E\): Activation energy \((J.mol^{-1})\)
\(m\): Power m \((-)\)	\(n\): Power n \((-)\)

8.2.5. Karnakas-Partridge

\[\frac{\partial x}{\partial t} = A_1 e^{\frac{-E_1} {R T}}\left(1-x\right)^{n_1}+A_2 e^{\frac{-E_2} {R T}} x^m\left(1-x\right)^{n_2}\]

Table 8.5 List of parameters/properties

\(x\): Degree of cure \((\%)\)	\(T\): Temperature \((K)\)
\(R\): Universal gas constant \((8.3144621 J.mol^{-1}.K^{-1})\)
\(A_{1}, A_{2}\): Pre-exponential factor \((s^{-1})\)	\(E_{1}, E_{2}\): Activation energy \((J.mol^{-1})\)
\(m\): Power m \((-)\)	\(n_{1}, n_{2}\): Power n \((-)\)

8.2.6. Proportional Diffusion Limitation

\[difLim = 1+e^{C\left(x-\left(AC_0+AC_{T} T\right)\right)}\]

Table 8.6 List of parameters/properties

\(x\): Degree of cure \((\%)\)	\(T\): Temperature \((K)\)
\(AC_{0}\): Initial value \((-)\)	\(AC_{0}\): Temperature dependence \((K^{-1})\)
\(C\): Coefficient C \((-)\)

8.2.7. Parallel Diffusion Limitation

\[difLim = A_{D} e^{-\frac{E_D} {R T} e^{-\frac{-b} {w \left(T-T_{g}\right)+g}}}\]

Table 8.7 List of parameters/properties

\(T\): Temperature \((K)\)	\(T_{g}\): Glass transition temperature \((K)\)
\(R\): Universal gas constant \((8.3144621 J.mol^{-1}.K^{-1})\)
\(A_{D}\): Pre-exponential factor \((s^{-1})\)	\(E_{D}\): Activation energy \((J.mol^{-1})\)
\(b\): Coefficient b \((-)\)	\(w\): Coefficient w \((K^{-1})\)
\(g\): Coefficient g \((-)\)

8.2.8. Released Heat

\[\dot{q} = \frac{H_R\rho\left(1-V_f\right)}{x^\infty} \frac{\partial x}{\partial t}\]

Table 8.8 List of parameters/properties

\(H_R\): Total heat of reaction \((J kg^{-1})\)	\(\rho\): Mass density \((kg.m^{-3})\)
\(V_{f}\): Fibre volume fraction \((-)\)	\(x^{\infty}\): Maximum degree of cure \((\%)\)

8.2.9. Glass Transition Temperature

\[T_{g} = T^{0}_{g}+\lambda x \frac {T^{\infty}_{g}-T^{0}_{g}} {1-\left(1-\lambda\right)x}\]

Table 8.9 List of parameters/properties

\(T^{0}_{g}\): Initial value \((K)\)	\(T^{\infty}_{g}\): Final value \((K)\)
\(\lambda\): Fitting coefficient \((-)\)	\(x\): Degree of cure \((\%)\)

8.2.10. Cure Shrinkage

\[\Delta{}\varepsilon_{X} = \Delta{}x \varepsilon^{sh}_X\]

\[\Delta{}\varepsilon_{Y} = \Delta{}x \varepsilon^{sh}_Y\]

\[\Delta{}\varepsilon_{Z} = \Delta{}x \varepsilon^{sh}_Z\]

Table 8.10 List of parameters/properties

\(x\): Degree of cure \((\%)\)	\(\varepsilon^{sh}_{x}\): Total cure shrinkage normal strain alon X \((-)\)
\(\varepsilon^{sh}_{y}\): Total cure shrinkage normal strain alon Y \((-)\)	\(\varepsilon^{sh}_{z}\): Total cure shrinkage normal strain alon Z \((-)\)

The user can only provide directional cure shrinkage strains. The cure shrinkage is scaled linearly with the degree of cure \(x\).

8.2.11. Material Model

There are generally two main transitions that can be identified during the curing process of a thermosetting resin. The first one is gelation occurring at approximately 30% - 50% degree of conversion and the second one is vitrification occurring when the current temperature becomes lower than the glass transition temperature (\(T_{g}\)). Gelation is an irreversible process and corresponds to the formation of a 3-D infinite network of polymer chains. Vitrification occurs once the current temperature becomes lower than the glass transition temperature (\(T_{g}\)) and the resin transforms from the rubbery to the glassy, or solid, state. Vitrification is reversible and when the material temperature exceeds \(T_{g}\), the epoxy transforms back from the glassy to the rubbery state.

The thermoset material model within ACCS has four material states: liquid, un-gelled glassy, rubbery, and glassy as illustrated in Figure 1. Liquid has a state value of 0, un-gelled glassy of 1, rubbery of 2 and glassy of 3. The continuous blue line corresponds to the glass temperature transition, the green line to the gelation degree of cure, and the red numbers highlight the zone where the sub-equations are valid. A smooth variation of material properties can be used by setting strictly positive values to the margins \(T_{m}\) and \(x_{m}\). It will linearly interpolate between the properties of the different material states according to the temperature, glass transition temperature, degree of cure, and gelation degree of cure in thermosets.

Fig. 8.2 Temperature vs. Degree of cure plot highlighting the material states

The variables used to compute the material properties are:

Table 8.11 Properties’ list

\(T\): Temperature \((K)\)	\(x\): Degree of cure \((-)\)
\(T_{g}\): Glass transition temperature \((K)\)	\(x_{g}\): Gelation degree of cure \((-)\)
\(T_{m}\): Margin around glass transition temperature \((\Delta K)\)	\(x_{m}\): Margin around gelation degree of cure \((-)\)
\(T_{n}\): Normalized glass transition temperature \((\Delta K)\)	\(x_{n}\): Normalized degree of cure \((-)\)

\[T_{n} = \frac{T-T_{g}}{T_{m}}\]

\[x_{n} = \frac{x-x_{g}}{x_{m}}\]

A material property named “A” have the following names in the different states:

Table 8.12 Property denomination for each material state

\(A^{L}\): Property in liquid state	\(A^{U}\): Property in ungeled glassy state
\(A^{R}\): Property in rubbbery state	\(A^{S}\): Property in geled glassy state

\[\begin{split}A = \begin{cases} A^{U} & \text{if} & x \leq x_{g}-x_{m} & \text{and} & T \leq T_{g}-T_{m} & (1)\\ A^{L} & \text{if} & x \leq x_{g}-x_{m} & \text{and} & T_{g}+T_{m} \leq T & (2)\\ A^{R} & \text{if} & x_{g}+x_{m} \leq x & \text{and} & T \leq T_{g}-T_{m} & (3)\\ A^{S} & \text{if} & x_{g}+x_{m} \leq x & \text{and} & T_{g}+T_{m} \leq T & (4)\\ \frac{1}{2}\left[ A^{U}\left(1-T_{n}\right) + A^{L}\left(1+T_{n}\right) \right] & \text{if} & x \leq x_{g}-x_{m} & \text{and} & T_{g}-T_{m} < T < T_{g}+T_{m} & (5)\\ \frac{1}{2}\left[ A^{S}\left(1-T_{n}\right) + A^{R}\left(1+T_{n}\right) \right] & \text{if} & x_{g}+x_{m} \leq x & \text{and} & T_{g}-T_{m} < T < T_{g}+T_{m} & (6)\\ \frac{1}{2}\left[ A^{U}\left(1-x_{n}\right) + A^{S}\left(1+x_{n}\right) \right] & \text{if} & x_{g}-x_{m} < x < x_{g}+x_{m} & \text{and} & T \leq T_{g}-T_{m} & (7)\\ \frac{1}{2}\left[ A^{L}\left(1-x_{n}\right) + A^{R}\left(1+x_{n}\right) \right] & \text{if} & x_{g}-x_{m} < x < x_{g}+x_{m} & \text{and} & T_{g}+T_{m} \leq T & (8)\\ \frac{1}{4}\left[ A^{L}\left(1-x_{n}\right)\left(1-T_{n}\right) + A^{U}\left(1-x_{n}\right)\left(1+T_{n}\right) + A^{R}\left(1+x_{n}\right)\left(1-T_{n}\right) + A^{S}\left(1+x_{n}\right)\left(1+T_{n}\right) \right] & \text{if} & x_{g}-x_{m} < x < x_{g}+x_{m} & \text{and} & T_{g}-T_{m} < T < T_{g}+T_{m} & (9)\\ \end{cases}\end{split}\]

8.3. Crystallisation Equations for thermoplastics

8.3.1. PEEK

The implementation of the PEEK material model is based on the work published by Velisaris and Seferis [PEEK_ref].

\[x^{t} = x^{\infty} \left( w^{N} F^{N}_{vc} + \left(1-w^{N}\right) F^{G}_{vc} \right)\]

\[x^{t} = x^{c} \left( 1 - \frac{K_{int}}{2} \right)\]

\[F^{X}_{vc} = 1-e^{-\left( \left(log\left({\frac{1}{1-F^{X}_{vc}}}\right)\right)^{\frac{1}{n^{X}}} + \delta t \left(K^{X}\right)^{\frac{1}{n^{X}}} \right)^{n^{X}}}\]

\[K_{int} += \left( A_{m} e^{-\frac{E_{m}} {R T}} \right) \delta t\]

\[K^{X} = C^{X}_{1} T e^{-\frac{C^{X}_{2}}{T-\left(T_{g}+dT_{g}\right)} - \frac{C^{X}_{3}}{T\left(T_{g}-T^{X}_{m}\right)}}\]

\[F^{X}_{vc} = F^{X}_{vc} \frac{x^{t}} {x^{t-\delta t}}\]

Table 8.13 List of parameters/properties

\(x^{t}\): Degree of crystallisation \((\%)\)	\(x^{\infty}\): Maximum degree of crystallisation \((\%)\)
\(x^{c}\): Degree of crystallisation at end of crystallisation \((\%)\)	\(K_{int}\): Integral of Arrhenius law \((s)\)
\(w^{N}\): Nucleation weight factor \((-)\)	\(X\): Nucleation (N) or Growth (G) upper index \((-)\)
\(F^{X}_{vc}\): Growth normalized volume fraction of crystallinities \((-)\)	\(n^{X}\): Avrami exponent \((-)\)
\(K^{X}\): Crystallisation rate \((s^{-n^{X}})\)	\(C_{1}^{X}\): Constant C1 \((s^{-n^{X}}.K^{-1})\)
\(C_{2}^{X}\): Constant C2 \((K)\)	\(C_{3}^{X}\): Constant C3 \((K^{3})\)
\(T_{m}^{X}\): Melting temperature \((K)\)
\(T\): Temperature \((K)\)	\(\delta t\): Time step \((s)\)
\(T_{g}\): Glass transition temperature \((K)\)	\(dT_{g}\): Glass transition temperature shift \((\Delta K)\)
\(A_{m}\): Pre-exponential factor \((s^{-1})\)	\(E_{m}\): Activation energy \((J.mol^{-1})\)

8.3.2. Released Heat

\[\dot{q} = \frac{H_R\rho\left(1-V_f\right)}{x^\infty} \frac{\partial x}{\partial t}\]

Table 8.14 List of parameters/properties

\(H_R\): Total heat of reaction \((J kg^{-1})\)	\(\rho\): Mass density \((kg.m^{-3})\)
\(V_{f}\): Fibre volume fraction \((-)\)	\(x^{\infty}\): Maximum degree of crystallisation \((\%)\)

8.3.3. Reference Temperature

\[T_{r} = T^{am}_{r}+ \left(T^{cr}_{r}-T^{am}_{r}\right) \frac {x} {x^{\infty}}\]

Table 8.15 List of parameters/properties

\(T^{am}_{r}\): Amorphous reference temperature \((K)\)	\(T^{cr}_{r}\): Crystallised reference temperature \((K)\)
\(x\): Degree of crystallisation \((\%)\)	\(x^{\infty}\): Maximum degree of crystallisation \((\%)\)

8.3.4. Cure Shrinkage

The volume variation is computed by the following equation:

\[\Delta V = \frac{\Delta \rho}{\rho}\]

Table 8.16 List of parameters/properties

\(\Delta \rho\): Mass density variation \((K)\)

\(\rho\): Mass density \((kg.m^{-3})\)

The linear cure shrinkage of the matrix is computed by the following equation:

\[\Delta\varepsilon^{sh}_{m} = \frac { -1 + \sqrt{1+\frac{4}{3}\Delta V}} {2}\]

The linear cure shrinkage of the mix is computed by the following equations:

\[\Delta\varepsilon_{X} = \frac { E_{m} \Delta\varepsilon^{sh}_{m} \left(1-V_{f}\right) } { E^{XX}_{f}V_{f}+E_{m}\left(1-V_{f}\right) }\]

\[\Delta\varepsilon_{Y} = \Delta\varepsilon_{Z} = \left(1+\nu_{m}\right)\Delta\varepsilon^{sh}_{m}\left(1-V_{f}\right) - \Delta\varepsilon_{X} \left(\nu^{XY}_{f}V_{f}+\nu_{m}\left(1-V_{f}\right)\right)\]

Table 8.17 List of parameters/properties

\(E_{m}\): Young’s modulus of the matrix \((Pa)\)	\(\nu_{m}\): Poisson’s ratio of the matrix \((-)\)
\(E^{XX}_{f}\): Young’s modulus of the fibres \((Pa)\)	\(\nu^{XY}_{f}\): Poisson’s ratio of the fibres \((-)\)
\(V_{f}\): Fibre volume fraction \((-)\)

8.3.5. Material Model

In thermoplastics there are generally two main transitions that can be identified during the curing process. The first one is crystallisation occurring when the current temperature becomes lower than the glass transition temperature (\(T_{g}\)) and the second one is melting occurring when the current temperature becomes higher than the melting temperature (\(T_{m}\)). The crystallisation occurs once the current temperature becomes lower than the glass transition temperature (\(T_{g}\)) and the resin transforms from the crystallisation to the glassy, or solid, state. The crystallisation is reversible and when the material temperature exceeds \(T_{g}\), the resin transforms back from the glassy to the crystallisation state. Melting occurs once the current temperature becomes higher than the melting temperature (\(T_{m}\)) and the polymer transforms from the crystallisation to the melted, state. Melting is irreversible and the crystallisation is reset to 0 when the material is in the melting state.

The material model within ACCS has four material states: glassy, lower crystallisation, higher crystallisation, and melted as illustrated in Figure 1. Glassy has a state value of -1, lower crystallisation glassy of 0, higher crystallisation of 1 and melted of 2.

8.4. Viscoelasticity

ACCS can take into account viscoelasticity during curing. They are defined for each material state (\(s\)) and on the stiffnesses of the three normal and the three shearing directions (\(ij\)). The instantaneous modulus (\(A^{0}_{ij}\)) is obtained by the mixing rule described in Material Model.

The equations for the viscoelastic laws are taken from [Viscoelasticity_ref] and the ones for the time shifts from an internal report.

Note

Viscoelasticity is only supported for thermosets currently.

The plots presented below are taken from a cube model being pulled along the Z direction. The bottom nodes are fixed along the Z direction. Each step is solved for \(3000 s\). Nothing happens during the first 3000 s. Then the 4 top nodes are displaced by \(10\%\), then they are displaced by another \(10\%\). They are then freed from the UZ condition. A \(225 N\) force is applied on each of the 4 top nodes, the force is then increased to \(450 N\), and finally released. During the first phase (UZ conditions), it is expected that the elastic strains stay stable and the stresses will present the viscoelastic response. During the second phase (FZ conditions), it is expected that the stresses stay stable and the elastic strains will present the viscoelastic response. The time constants used are 1200 s, the modulus coefficients 0.33, and the power coefficients 1.12.

8.4.1. Prony Series

Effective stiffness’s for each terms (\(u\)):

\[A^{us}_{ij}=A^{0}_{ij}C^{us}_{ij}\]

Table 8.18 List of parameters/properties

\(A^{0}_{ij}\): Instantaneous modulus \((Pa)\)

\(C^{us}_{ij}\): Modulus coefficient \((-)\)

Visco-elastic strain increment:

\[\delta \varepsilon v^{us}_{ij} = \frac{\tau^{us}_{ij}}{\delta{}t} \left( \frac{\delta{}t}{\tau^{us}_{ij}} + e^{-\frac{\delta{}t}{\tau^{us}_{ij}}} - 1 \right) \delta\varepsilon_{ij} + \left(1-e^{-\frac{\delta{}t}{\tau^{us}_{ij}}}\right)\left(\varepsilon_{ij}-\varepsilon v^{us}_{ij}\right)\]

Table 8.19 List of parameters/properties

\(\delta t\): Time step \((s)\)	\(\tau^{us}_{ij}\): Time constant \((s)\)
\(\delta\varepsilon_{ij}\): Mechanical strain increment value \((-)\)
\(\varepsilon_{ij}\): Mechanical strain value at beginning of time step \((-)\)	\(\varepsilon v^{us}_{ij}\): Viscoelastic strain value at beginning of time step \((-)\)

Table 8.20 Validation curves

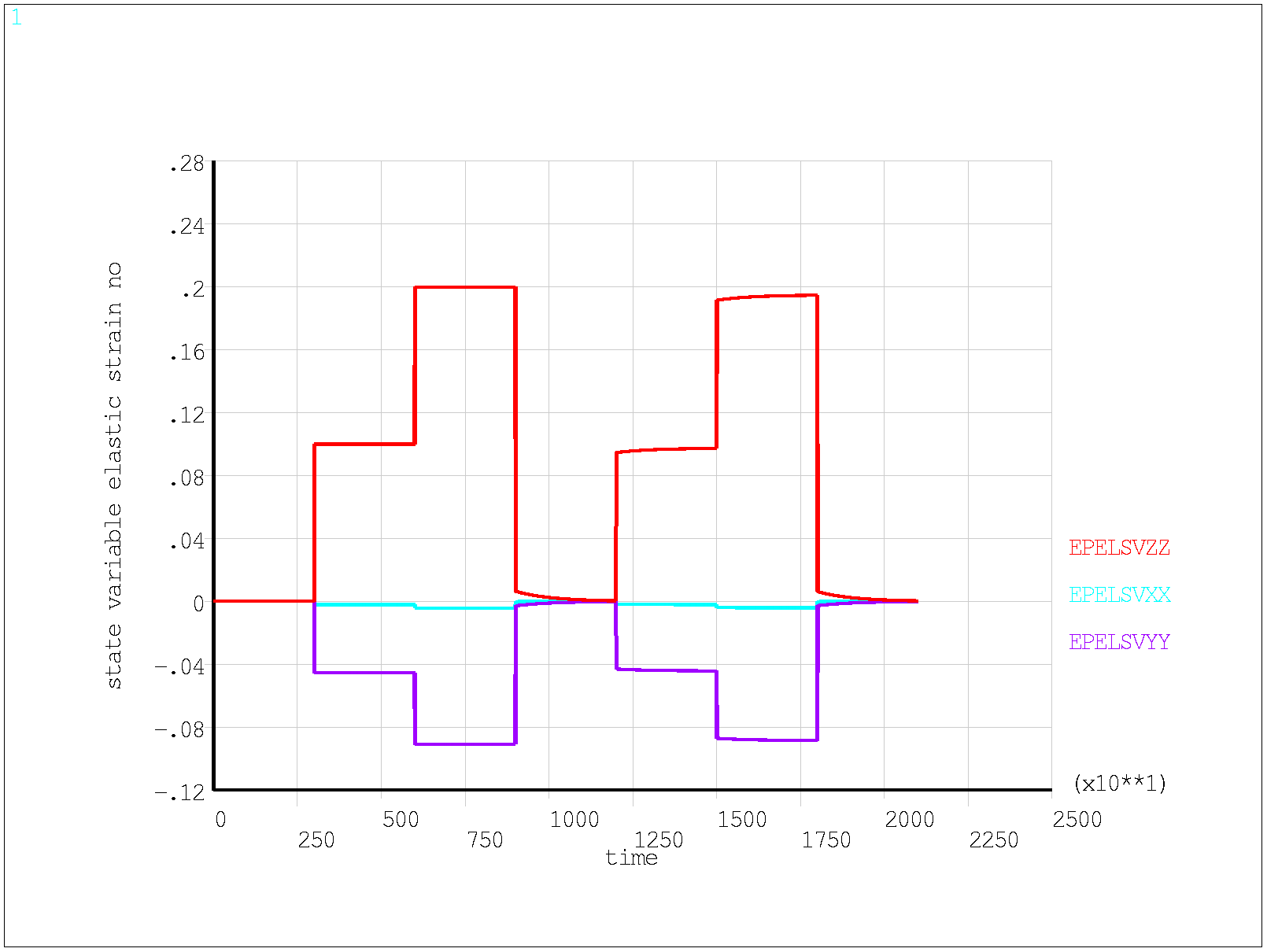

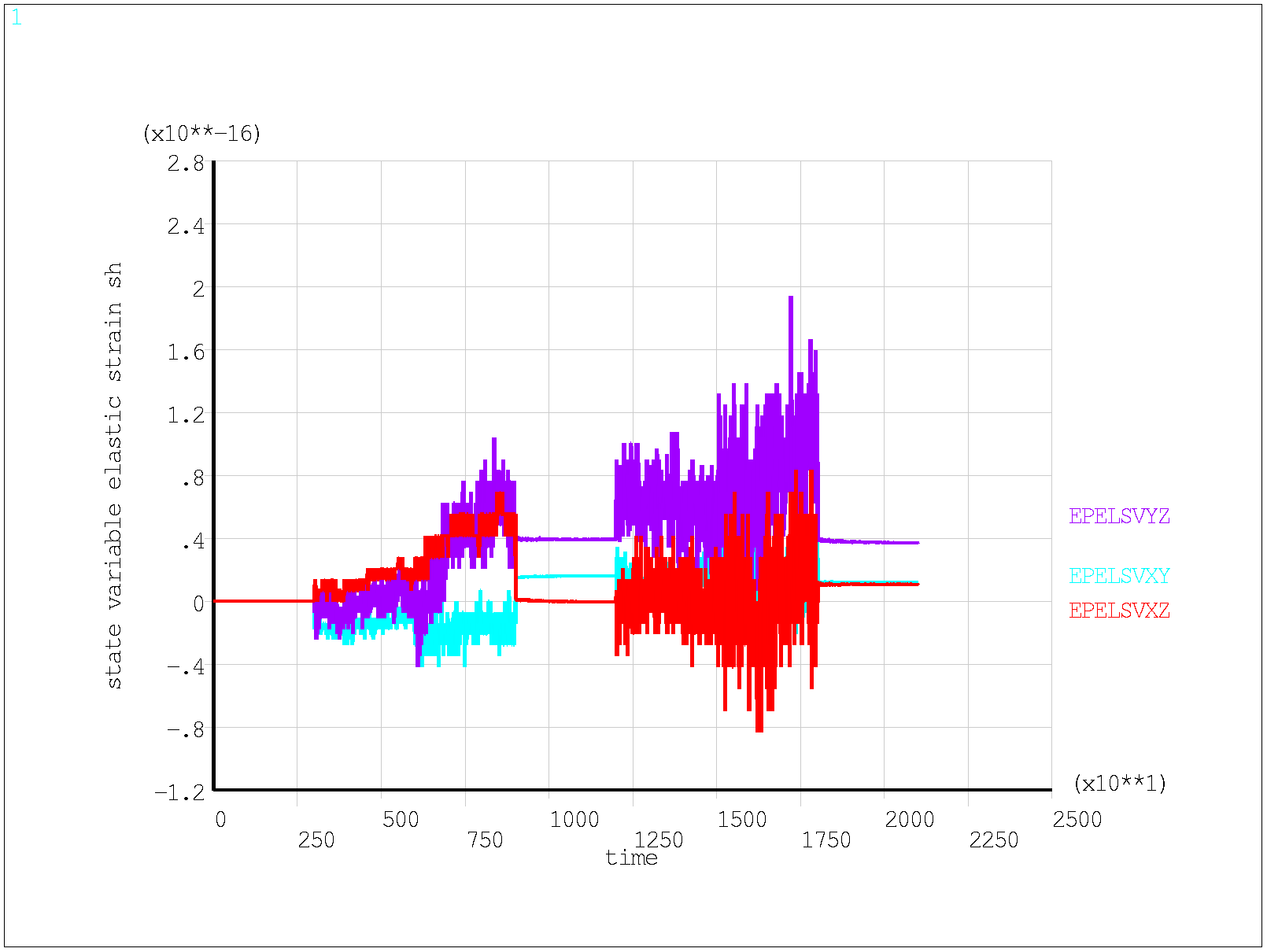

Fig. 8.3 Normal elastic strains	Fig. 8.4 Shear elastic strains

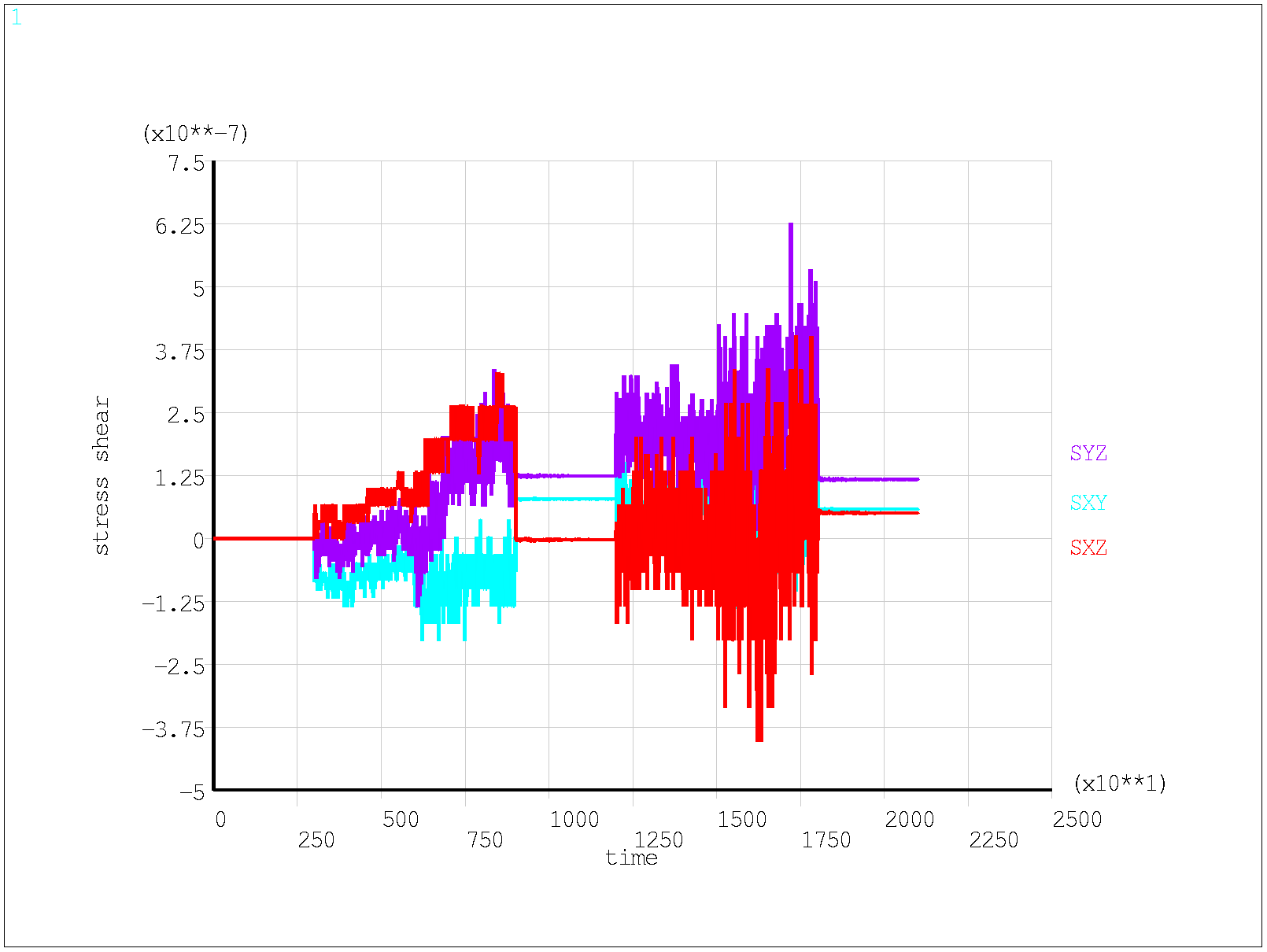

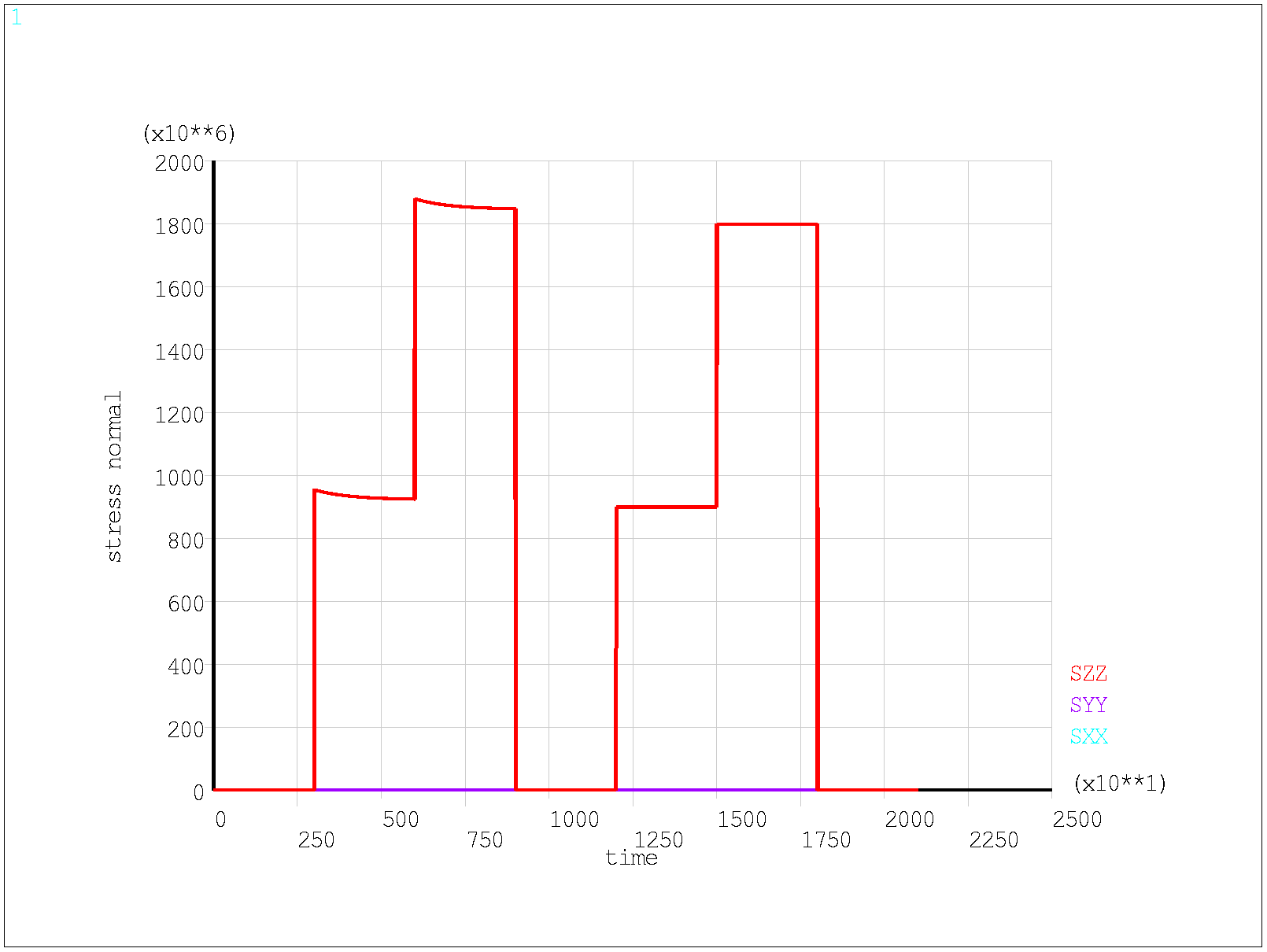

Fig. 8.5 Normal stresses	Fig. 8.6 Shear stresses

8.4.2. Temperature Time Shift

\[\begin{split}t = \begin{cases} t / 10 ^{ - A_{1} \left(T-T_{MID}\right) + C_{1} \frac{T_{MID}-T_{R}}{C_{2}+T_{MID}-T_{R}} }, & \text{if}\ T < T_{MID} \\ t / 10 ^{ - C_{1} \frac{T-T_{R}}{C_{2}+T-T_{R}} }, & \text{if}\ T \geq T_{MID} \end{cases}\end{split}\]

Table 8.21 List of parameters/properties

\(T\): Temperature \((K)\)	\(T_{MID}\): Mid-point temperature \((K)\)
\(T_{R}\): Reference temperature \((K)\)	\(A_{1}\): Coefficient \((-)\)
\(C_{1}\): Coefficient \((-)\)	\(C_{2}\): Coefficient \((K)\)

\(T_{R}\) is the temperature at which \(C_{1}\) and \(C_{2}\) were computed. \(T_{MID}\) defines the transition point between the William-Landel-Ferry formulation and the linear formulation.

8.4.3. Degree of Cure Time Shift

\[t = t / 10^{ - D_{1}\left(1-e^{D_{2}\left(1-x\right)}\right) }\]

Table 8.22 List of parameters/properties

\(x\): Degree of cure \((\%)\)
\(D_{1}\): Coefficient D1 \((-)\)	\(D_{2}\): Coefficient D2 \((-)\)

8.5. References

PEEK_ref

Velisaris, C.N. and Seferis, J.C. (1986), crystallisation kinetics of polyetheretherketone (peek) matrices. Polym Eng Sci, 26: 1574-1581. doi:10.1002/pen.760262208

Viscoelasticity_ref

5. 10. Barbero, Finite Element Analysis of Composite Materials Using ANSYS - Second Edition, CRC Press, 2014. ISBN 978-1-4665-1689-2.
